giunti

- Swivels with higher load capacity.

- The swivel types shown in the table are manufactured as per our design and can be develeped according t o customer specifications.

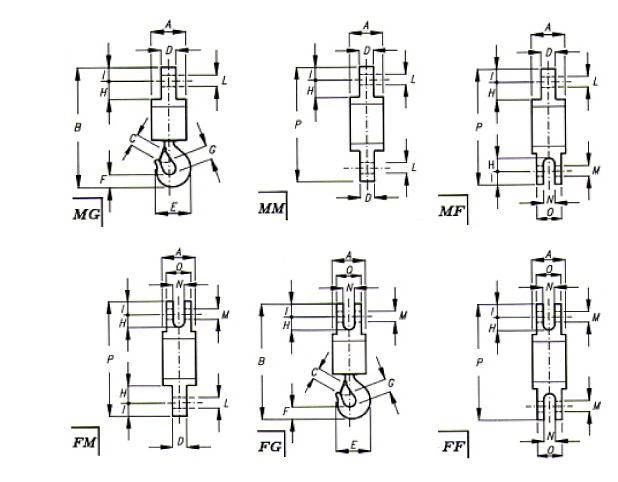

Approx. dimensions (mm)
Load capacity  (t)
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
I
mm
L
mm
M
mm
N
mm
O
mm
P
mm
2
60
259
29
19
104
29
30
35
30
26
25
23
45
222
3
70
299
34
25
125
37
35
40
35
31
30
26
54
247
5
85
377
43
30
165
46
45
50
43
36
35
35
65
310
7.5
95
439
52
39
192
57
54
60
48
42
38
40
76
351
10
118
519
57
45
221
66
65
75
59
52
42
46
94
438
15
146
650
76
55
279
76
73
95
73
64
50
58
128
558
20
165
735
92
60
346
93
87
105
74
60
50
58
148
599
25
165
815
95
60
357
116
98
105
74
60
50
58
148
599
